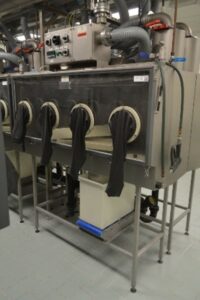

BFD1600 is an isolator with a floor space of 58×160 cm. = 0,92 m2, provided with 2 filter houses in the roof of the isolator, which can be closed by a valve made out of synthetic material.

One filter house, for incoming air, is provided with a Hepa-filter and the other one, for out going air, is provided with a coarse filter and a Hepa-filter.

BFD1600

One filter house, for incoming air, is provided with a Hepa-filter and the other one, for out going air, is provided with a coarse filter and a Hepa-filter. In the roof of the isolator is one service inlet for electricity and two for water. The front window is produced from a synthetic material and does not need to be repaired or changed. This window is provided with 4 pieces neoprene gloves. At the bottom of the isolator is a dung-tray with a plastic stop-valve, above the dung-tray is a tip-up grating.

BFD1600

Underneath the isolator is a plastic dip-tank, to create a water-lock, the inlet to the dip-tank can be closed with a plastic cover.

The BFD1600 will be delivered with a feeding tray, 2 pieces drinking-nipples and its own air vent system with its own heating system. The air vent system needs to be connected to a central airduct system.

BFD1600 isolator is made out of 2mm. thick stainless steel, 304 quality and pickled and passivated. BFD1600 is an isolator what can be used for positive or negative pressure.

These isolators are like brand new and ready to be used directly.
